Microsoft Azure Certified IoT DevKit (IOT-AZ3166)
SKU: IOT-AZ3166
List Price : Unavailable
Amazon Rating :
(98 Reviews)
Features
- CLOUD CONNECTED—Build a cloud powered IoT app in minutes using Microsoft Azure services
- FAST PROTOTYPING—Develop quickly and seamlessly utilizing Visual Studio with the Arduino Extension. Developer support provided by Microsoft
- POWERFUL PROCESSING—SoC module combines the power of the ST Microelectronics STM32F412 at its core and MXChip EMW3166 for Wi-Fi
- BUILT-IN EVERYTHING—On-board peripherals include an OLED screen, headphone output, stereo microphone, and abundant sensors like humidity and temperature, pressure, motion (accelerometer and gyroscope), and magnetometer
- CONNECT EASILY—25 external GPIO pins on the edge connector allow you to connect many external sensors and actuators
The Microsoft Azure Certified IoT DevKit (IOT-AZ3166) is an all-in-one kit optimized for prototyping and developing Internet of Things (IoT) solutions leveraging Microsoft Azure services.
It provides an Arduino compatible board with rich peripherals such as an OLED display, sensors, hardware debugging chip (ST-Link) and security chip, a growing projects catalog has innovative samples for learning and reference and comprehensive documentation. It can use Visual Studio Code with Arduino Extension to quickly build a full-fledged IoT application that integrates multiple services like Azure IoT Hub, Logic App, and Cognitive Services. This hardware/software integration makes developing new applications easier than ever before.
Seamless Development Experience
Use Visual Studio Code with Arduino Extension to quickly build a full-fledged IoT application that integrates multiple services like Azure IoT Hub, Logic App, and Cognitive Services. Our projects catalog has innovative samples to help you get started and build your own project.

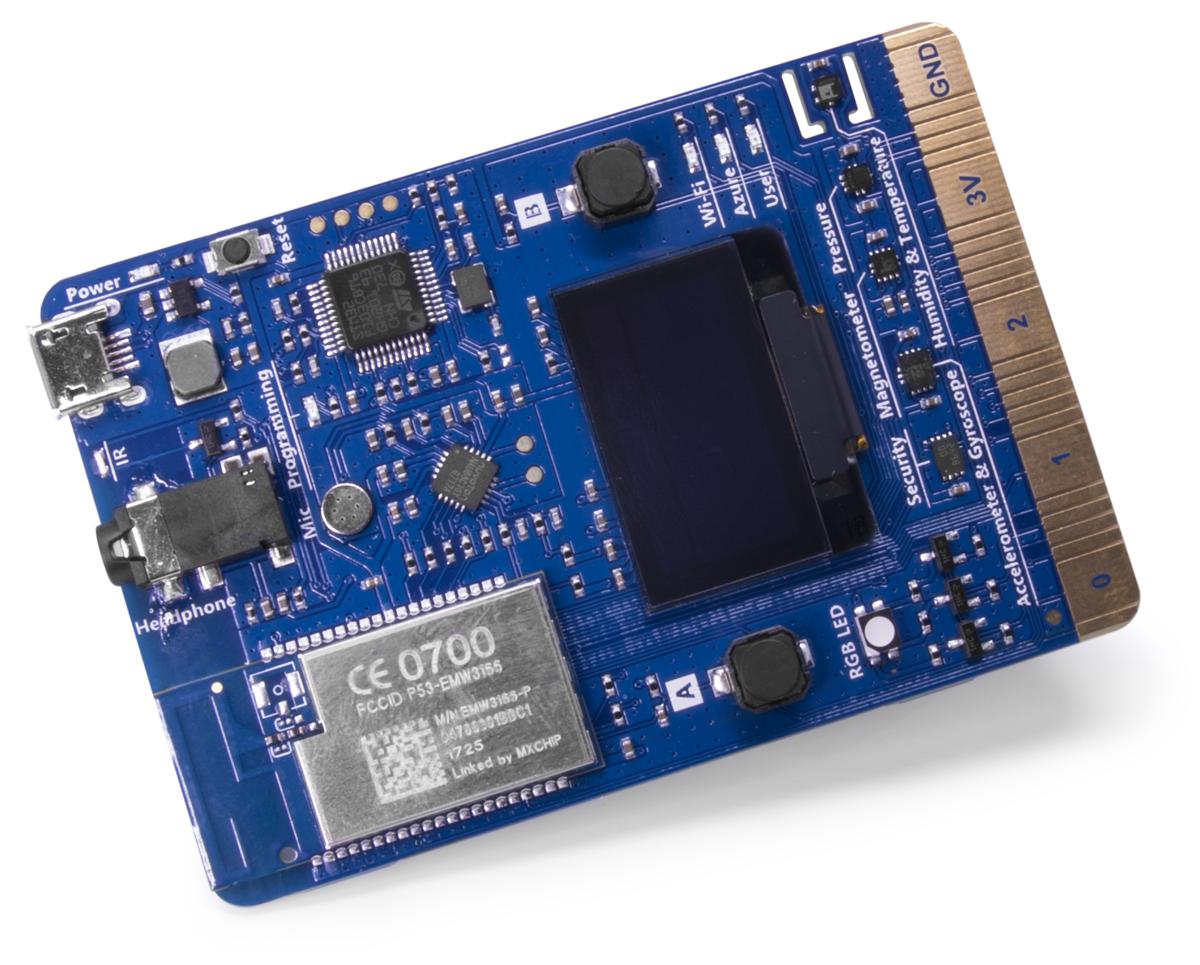

Powerful ARM Cortex-M Board with Rich Peripherals
SoC module combines the power of the ST Microelectronics STM32F412 at its core and Cypress BCM43362 for WiFi. The on-board peripherals include an OLED screen, headphone output, stereo microphone and abundant sensors like local atmosphere (humidity and temperature), pressure, motion (accelerometer and gyroscope), and magnetometer.
Fully Compatible Arduino Board
All the cool things you can do with an Arduino can be done with the DevKit. It is targeted for developers to create and prototype IoT projects, using a low-power device, quickly and easily. There are 25 external GPIO pins on the edge connector of the board, allowing you to connect to external sensors and actuators.
Device Technical Specifications
| IoT Connectivity | MQTT, HTTPS, and WiFi |
| Sensors | Humidity and Temperature, Gyroscope and Accelerometer, Air Pressure, Magnetometer, Microphone, and IrDA |
| I/O Connectivity | GPIO, I2C, Serial, and USB |
| Secure Hardware | ST-Safe A100 |
| Processor | 100 MHz STMicroelectronics STM32F412 |
| RAM | 256KB Memory |
| Storage | 2MB Flash Memory |
